Description

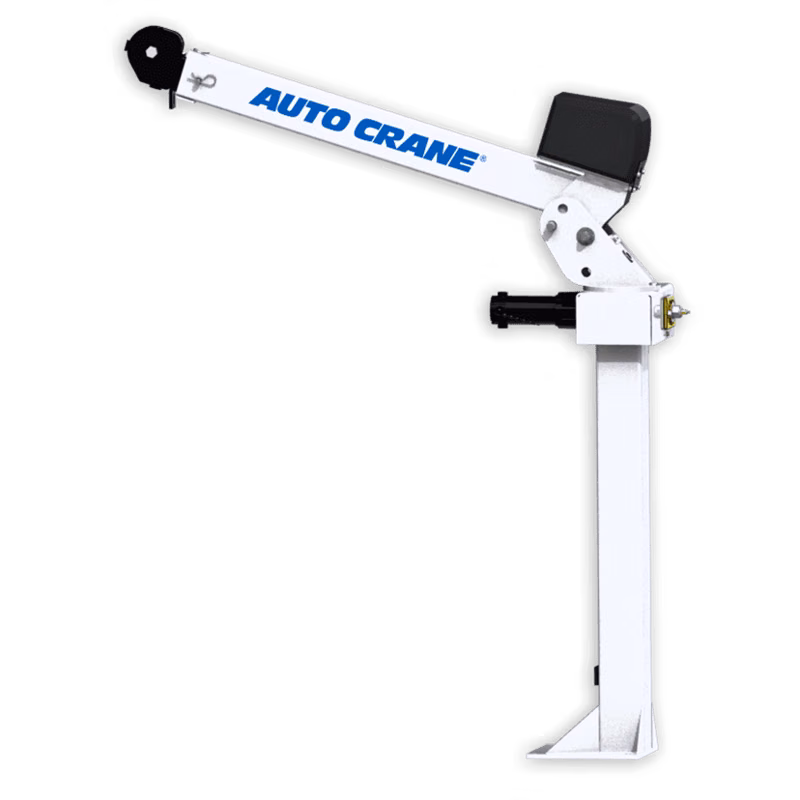

Auto Crane EC-2 – 7ft
Specifications
Manufacturer
Auto Crane
Model
EC-2 – 7ft
Year
2025
Category
Cranes
Subcategory
Service Cranes
Weight
255 lb (115 kg)
Body
Titan 16
Current Draw (amps)
15
Current Draw (amps) One
25
Current Draw (amps) Two
35
Current Draw (amps) Three
70
Lifting Weight (lb (kg)) One
500 (227)
Lifting Weight (lb (kg)) Two
1,000 (454)
Lifting Weight (lb (kg)) Three
2,000 (907)
Line Speed (ft (m)/min)
9.1 (2.77)
Line Speed (ft (m)/min) One
8.0 (2.44)
Line Speed (ft (m)/min) Two
7.1 (2.16)
Single or Double Line to Block
Single
Capacity
2,000 lbs (907 kg) at 3.25 ft (1.0 m)
Rating
6,500 ft-lb (0.9 t-m)
Chassis
Class 2 (5200 GVWR minimum)
Single Line Speed
9 ft/min (no load)
Motor
12 volt DC, permanent magnet, ¾ hp hoist motor
Length
7 ft (2.13 m) fully extended
Stowed Boom Length
4′ 2½” – 7′ 1″ (1.28 m-2.16 m)
Extended Boom Length
7′ (2.13 m)
Width
12″ (.3 m)
Height
4′ 2½” – 7′ 1″ (1.28 m-2.16 m)
Base Plate Dimensions
12.0" x 12.0" (0.3 m x 0.3 m)
Cable
25 ft (7.62 m) of ¼” (6.35 mm) aircraft quality cable (2)
