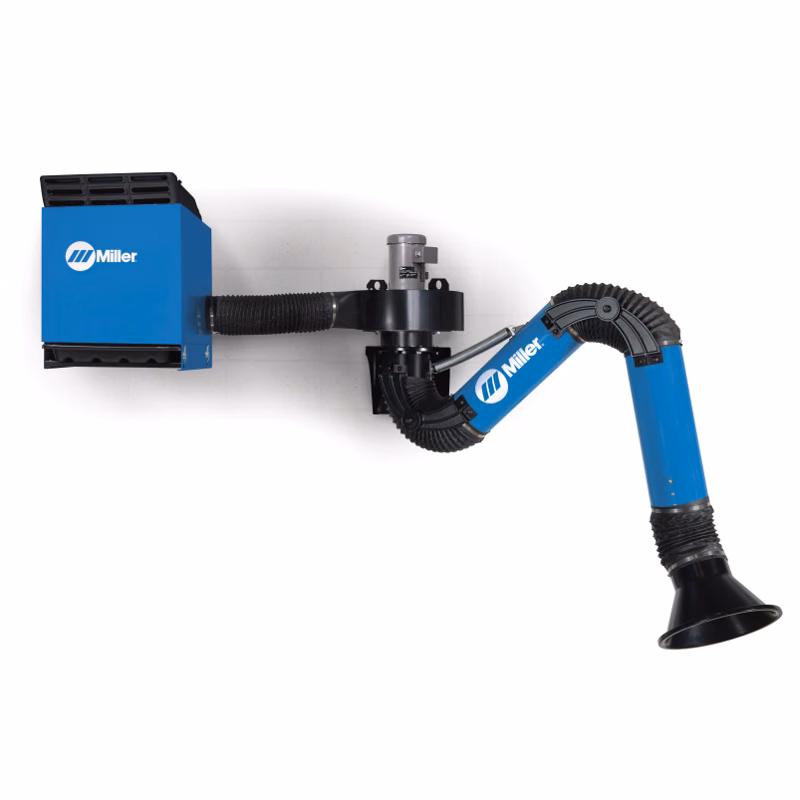

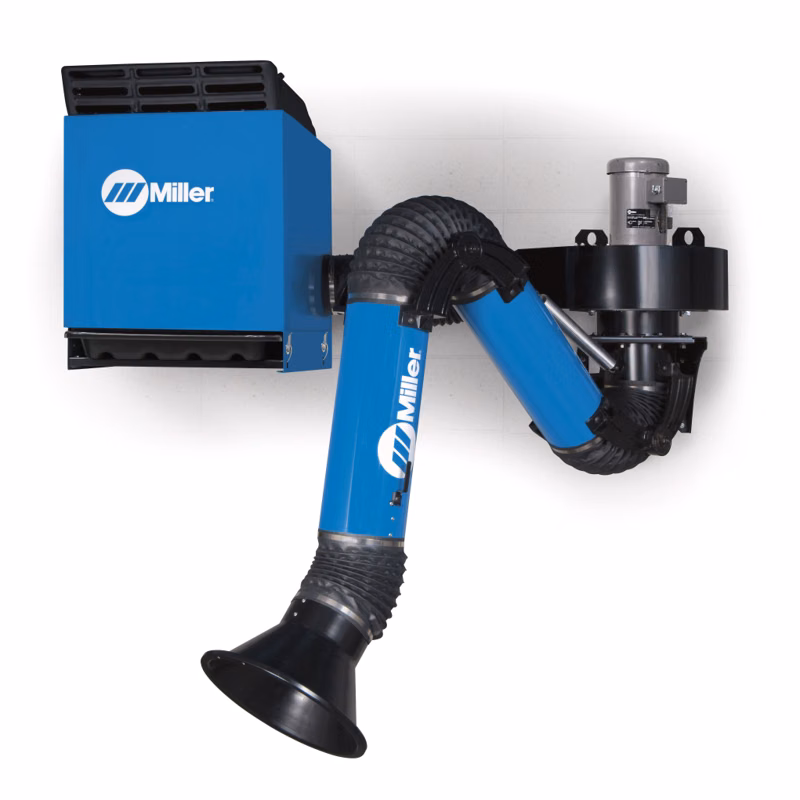

2025 Miller Electric Mfg. Filtair® SWX, Self CleanIng Option, 10 Ft. Arm(951517)
WeldersFume Extraction
Description
Stationary wall or column-mounted weld fume extraction systems feature class-leading suction power resulting in unrivaled filtering performance
Specifications
Manufacturer
Miller Electric Mfg.
Model
Filtair® SWX, Self CleanIng Option, 10 Ft. Arm(951517)
Year
2025
Category
Welders
Subcategory
Fume Extraction
Filter Media
490 sq ft (45.52 sq m)
Accu-Rated™ Airflow
875 cfm (413 L/sec)
Sound Level Standard
Approximately 75 dBA at 5 ft (1.5 m)
Sound Level ZoneFlow™
Approximately 80 dBA at 5 ft (1.5 m)
Motor
1 hp, 3,450 rpm
Power Blower motor
115 V, 1-phase, 60 Hz at approximately 11.9 A
Power Blower ZoneFlow™
115 V, 1-phase, 60 Hz at approximately 12 A
Net Weight without Arm Cabinet SWX-D
130 lb (59 kg)
Net Weight without Arm Cabinet SWX-S
195 lb (88 kg)
Net Weight without Arm Blower/bracket
95 lb (43 kg)
Extraction Arm Diameter
8 in (203 mm)
Dimensions H
SWX-D: 29 in (737 mm)
Dimensions H one
SWX-S: 33 in (838 mm)
Dimensions W
27.25 in (692 mm)
Dimensions D
33 in (838 mm)
