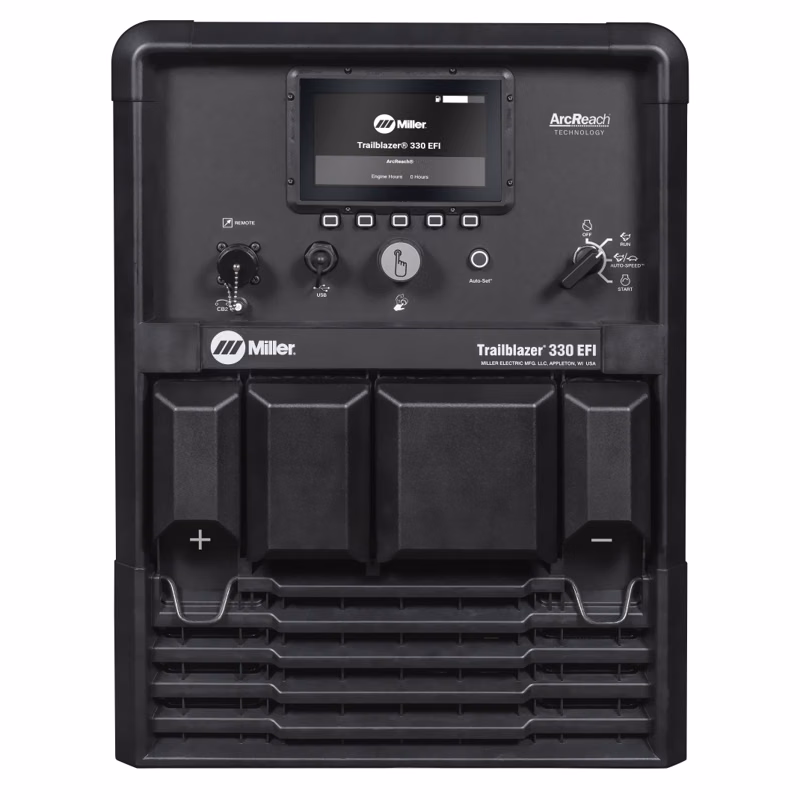

2025 Miller Electric Mfg. Trailblazer® 330 (Kohler) EFI (907832)
WeldersEngine Driven
Description
Reliable engine-driven welders with unbeatable arc performance, providing the smoothest, most stable arc in the industry. Trailblazer exclusive technologies — advanced Auto-Speed™ and optional Excel™ power — deliver superior runtimes, increase fuel efficiency, and improve engine-driven welder performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter jobsites.
Specifications
Manufacturer
Miller Electric Mfg.
Model
Trailblazer® 330 (Kohler) EFI (907832)
Year
2025
Category
Welders
Subcategory
Engine Driven
Engine Brand
Kohler
Engine Idle Speed
2400 RPM
Engine Weld Speed
Advanced Auto-Speed(TM) technology: Varies engine speed from 2,400-3,600 rpm to match weld output
Fuel Tank Size
11 Gallon
Fuel Type
Gasoline
Horsepower
23 hp
Industries
Construction & Fabrication Heavy Equipment
Amperage
20 A - 330 A
Weldable Metals
Aluminum Stainless Steel
Current Type
DC
Max Open Circuit Voltage
107 VDC
Portability
Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional)
Weld Output
CC / CV
Rated Output
CC/DC Stick/TIG 330 A at 30 V, 100% duty cycle, CV/DC MIG/FCAW 325 A at 30.25 V, 100% duty cycle
Single Phase Auxiliary Continuous Power
10500 W
Single Phase Auxiliary Peak Power
12000 W
Sound Rating
65 d B @ idle and 73.5 d B @ max weld
Net Weight
400 lbs
Rated Carbon Diameter
1/4 in (6.4 mm)
Net Width
20.13 in
Net Height
26.5 in
Net Length
37.06 in
