Description

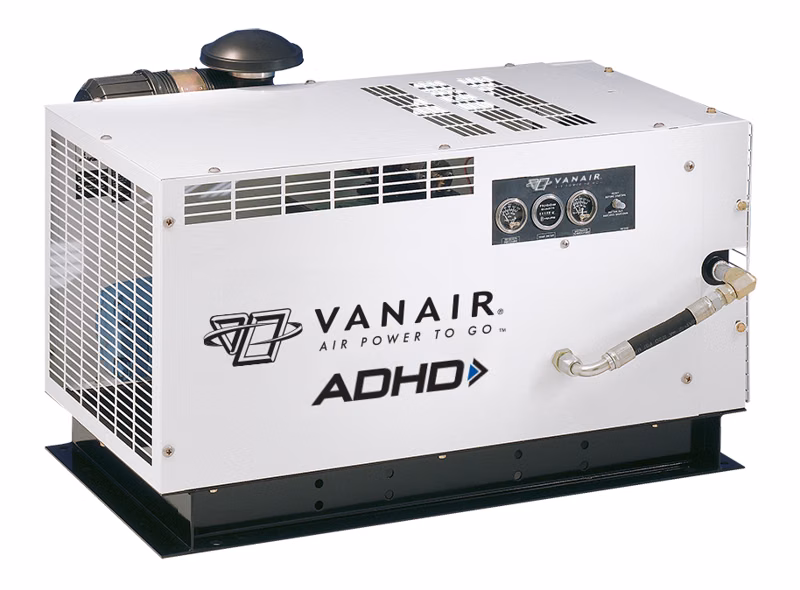

Big Air Power Abovedeck Powerful, and built for heavy-duty applications, Vanair’s hydraulically driven ADHD provides you with the power of a 185 CFM and 150 PSI PTO shaft-driven system in a modular package. Designed to be versatile, the ADHD can be placed anywhere on the vehicle to meet your layout needs. Available in multiple configurations, the ADHD features a lifetime warranty on its air end.
Specifications
Manufacturer
Vanair
Model
ADHD (Hydraulic Flow (GPM): 36.8)
Year
2025
Category
Air Compressors
Subcategory
Air Compressors
Compressor Dimensions with fittings (In) - standard side-mount receiver configuration One
46.3L x 47.4W x 26.8H
Compressor Dimensions with fittings (In) - standard side-mount receiver configuration 185 CFM @ 100 PSI
46.3L x 47.4W x 26.8H
Compressor Dimensions with fittings (In) - Vertically Stacked configuration receiver 185 CFM @ 100 PSI
45.9L x 35.7W x 42.9H
Compressor Dimensions with fittings (In) - Vertically Stacked configuration receiver
48.4L x 35.7W x 42.9H
Capacity (CFM)
160
Air Pressure (PSI)
100
Hydraulic Flow (GPM)
36.8
Hydraulic Pressure (PSI)
2200
Input-Speed (RPM)
1770
Dry Weight (Lbs)
730 (standard side-mount), 900 (Vertical Stacked configuration)
