Description

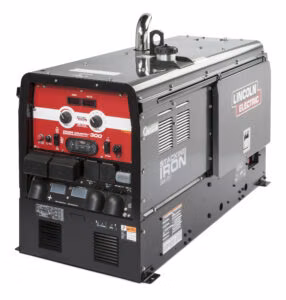

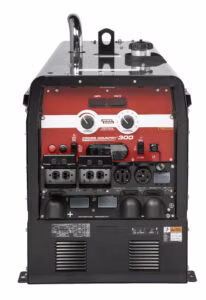

Purpose-Built for Pipe Welding This excellent engine driven welder/generator is capable of DC multi-purpose welding, 120/240 VAC single phase, and 240 VAC three phase auxiliary power. Designed for pipeline welding, the Cross Country® 300 features dual output control to fine-tune the welding arc, all in a compact, lightweight package to fit into truck beds.
Specifications
Manufacturer
Vanair
Model
Cross Country® 300
Year
2025
Category
Welders
Subcategory
Welders
Engine Brand & Model
Kubota® V1505
Engine Description
4 Cylinder Naturally Aspirated Water-Cooled Diesel Engine
Engine Horsepower
22.0 HP (16.4 kW)
Engine Block Size & Displacement
91.4 cu in (1.5 L), Bore x Stroke – 3.07 in x 3.09 in (78 mm x 78 mm)
Emissions Rating
US EPA Tier 4 Final
Fuel Tank Size
11.6 gal, 44 L
Unit Dimensions (H x W x D)
31.9 in x 25.3 in x 56.0 in (810 mm x 643 mm x 1422 mm)
Net Weight
1034 lbs (469 kg)
Machine Processes
Stick (SMAW), Gouging (CAC-A), TIG (GTAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G)
Open Circuit Voltage
80 Peak OCV @ 1800 RPM
Single Phase Auxiliary Output
10,000 Watts Continuous, 11,500 Watts Peak, 120/240V
Three Phase Auxiliary Output
11,000 Watts Continuous, 12,500 Watts Peak, 240V
Auxiliary Output Frequency
60 Hz
Receptacle Types
NEMA 5-20R, NEMA 14-50R, NEMA 15-50R
High Idle Operating Speed @ Rated Output
1800 RPM
Low Idle Operating Speed
1350 RPM
Oil Capacity
6.4 qts, 6.0 L
Net Weight
1034 lbs (469 kg)
Coolant Capacity
1.2 gal, 4.5 L
