Description

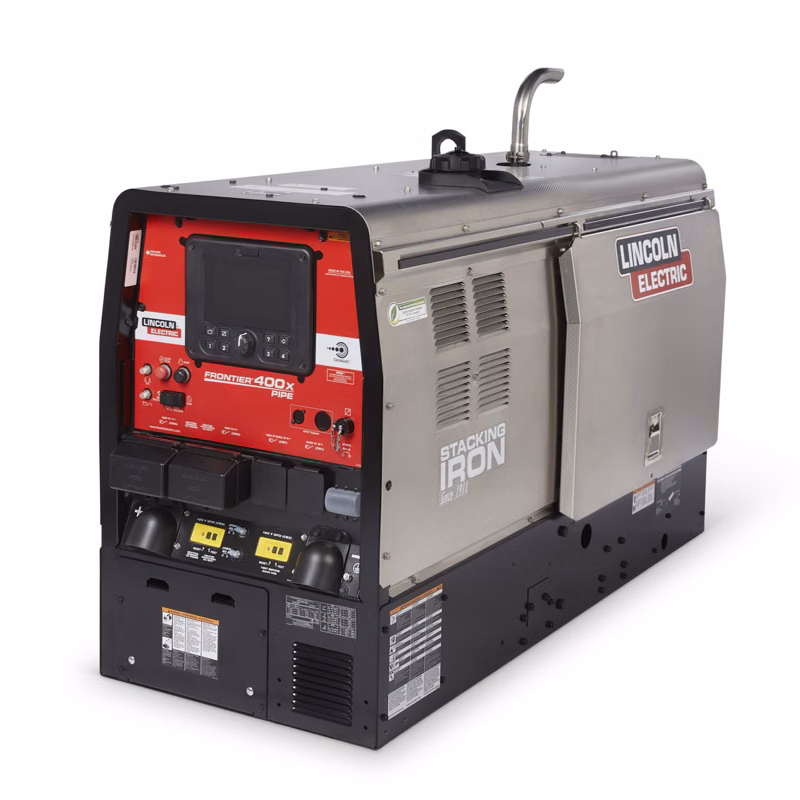

The New Frontier® of Pipeline Performance The Frontier® 400X Pipe Diesel Engine Driven Welder/Generator breaks the boundaries of pipeline welding innovation – delivering a versatile, next generation system for your go-to choice on the right-of-way. This system is powered by a 24.8 hp Kubota® D1503-M diesel engine.
Specifications
Manufacturer
Vanair
Model
Frontier® 400X Pipe
Year
2025
Category
Welders
Subcategory
Welders
Engine Brand & Model:
Kubota® D1503-M
Engine Description:
3 Cylinder Naturally Aspirated Water-Cooled Diesel Engine
Engine Horsepower:
24.8 hp (18.5 kW)
Engine Block Size & Displacement:
91.4 cu in (1.5 L), Bore x Stroke – 3.27 in x 3.64 in (83 mm x 92.4 mm)
Emissions Rating:
US EPA Tier 4 Final
Fuel Tank Size:
20 gal, 75.7 L
Machine Processes:
Stick (SMAW), Gouging (CAC-A), TIG (GTAW), MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G), Orbital MIG
Open Circuit Voltage:
71 Peak OCV @ 1800 RPM
Single Phase Auxiliary Output:
10,000 Watts Continuous, 11,500 Watts Peak, 120/240V
Three Phase Auxiliary Output:
11,000 Watts Continuous, 12,500 Watts Peak, 240V
Auxiliary Output Frequency:
60 Hz
Receptacle Types:
NEMA 5-20R, NEMA 14-50R, NEMA 15-50R
High Idle Operating Speed @ Rated Output:
1800 RPM
Low Idle Operating Speed:
1400 RPM
Sound Rating @23 ft (7m):
Low Idle: 67 dBA, High Idle: 71 dBA
Oil Capacity:
6.4 qts, 6.0 L
Dry Weight
1035 lbs (469 kg)
Coolant Capacity:
1.8 gal, 6.8 L
Unit Dimensions (H x W x D)
35.9 L x 25.3 W x 60 D (913 mm x 643 mm x 1524 mm)
