Description

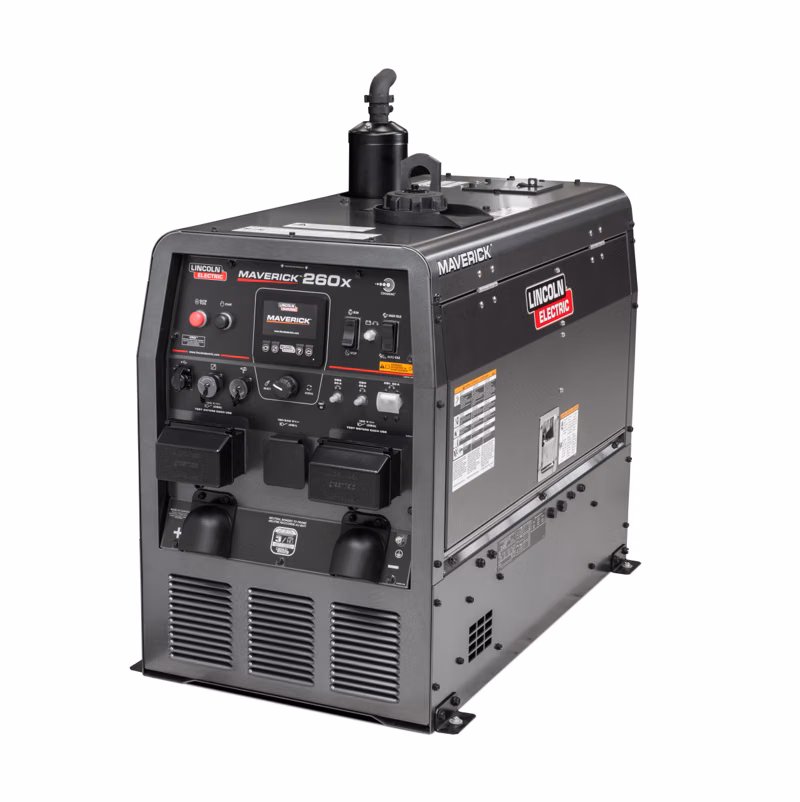

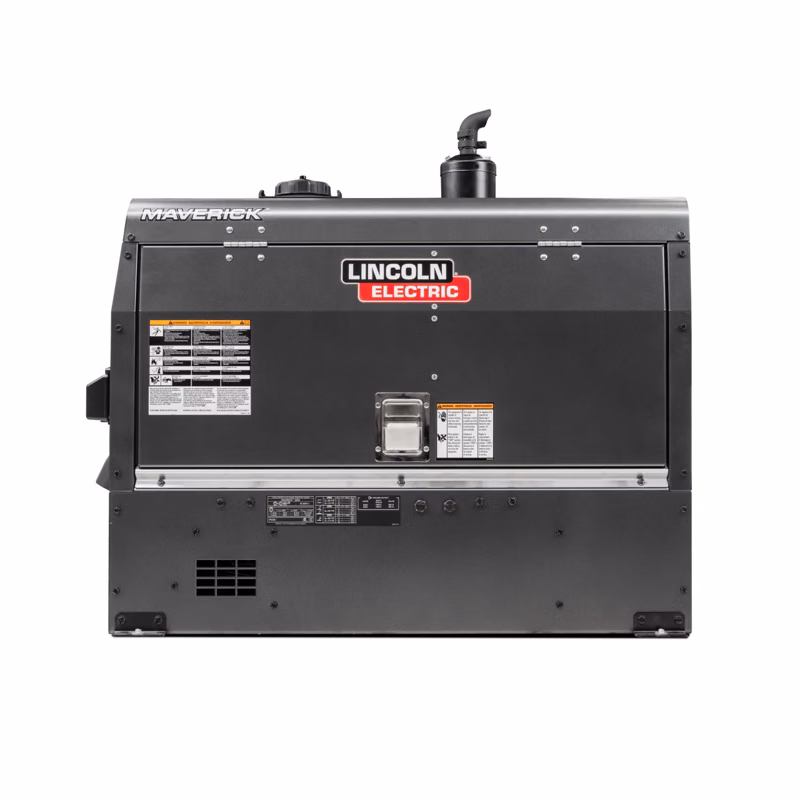

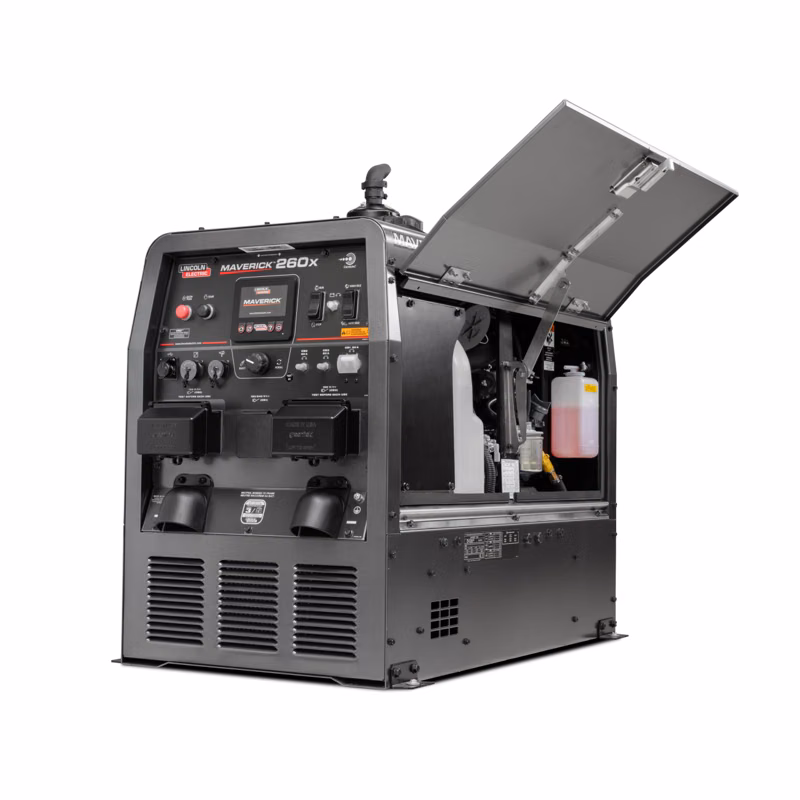

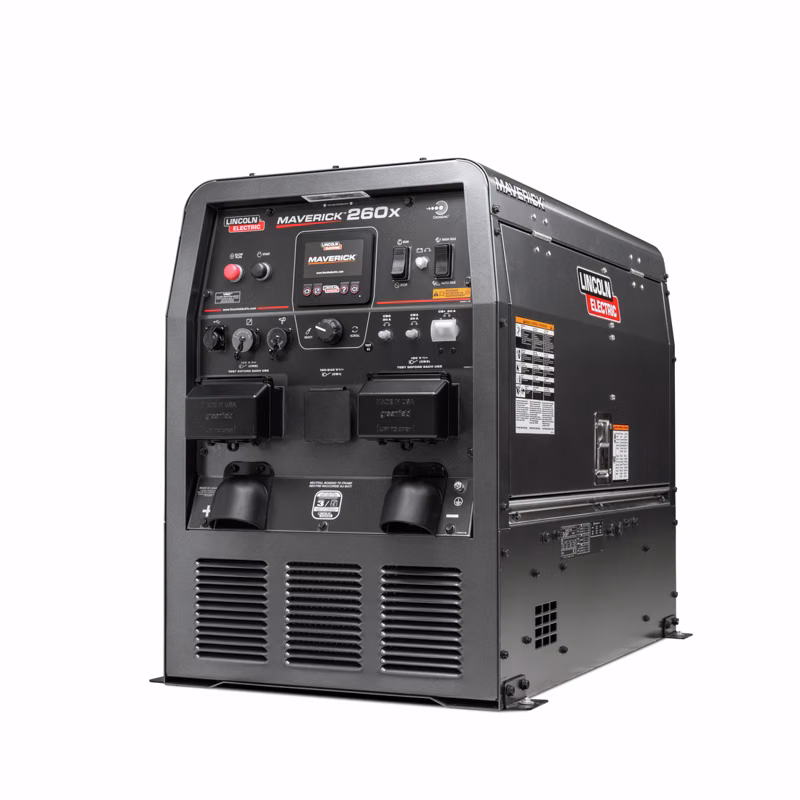

Small on Size – Big on Performance The Maverick® 260X Diesel Engine Driven Welder/Generator provides the perfect combination of size, performance, and innovation to deliver the next generation of compact diesel welders. This high-speed welder/generator is capable of advanced DC multi-purpose welding. It features 120/240 VAC single phase auxiliary power, a user interface screen for advanced features, patented CrossLinc® and Chopper Technology®, and is powered by a 16.8 hp Kubota® Z602 diesel engine.
Specifications
Manufacturer
Vanair
Model
Maverick® 260X
Year
2025
Category
Welders
Subcategory
Welders
Engine Brand & Model
Kubota® Z602
Engine Description
2 Cylinder Naturally Aspirated Water-Cooled Diesel Engine
Engine Horsepower
16.8 hp (12.36 kW)
Engine Block Size & Displacement
36.55 cu in (0.599 L), Bore x Stroke – 2.83 in x 2.90 in (72 mm x 73.6 mm)
Emissions Rating
US EPA Tier 4 Final
Fuel Tank Size
12 gal, 45.4 L
Unit Dimensions (H x W x D)
39.25 in x 21.25 in x 42.34 in (997 mm x 540 mm x 1076 mm)
Machine Processes
Stick (SMAW), Gouging (CAC-A), TIG (GTAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G)
Open Circuit Voltage
80 Peak OCV @ 3600 RPM
Single Phase Auxiliary Output
9,000 Watts Continuous, 120/240V
Auxiliary Output Frequency
60 Hz
Receptacle Types
NEMA 5-20R, NEMA 14-50R
High Idle Operating Speed @ Rated Output
3600 RPM
Low Idle Operating Speed
2500 RPM
Sound Rating @ 23 ft (7m)
Idle: 77.1 dB, Max Load: 82.6 dB
Oil Capacity
2.64 qts, 2.5 L
Coolant Capacity
0.74 gal, 3.1 L
Dry Weight
620 lbs (281 kg)
