Description

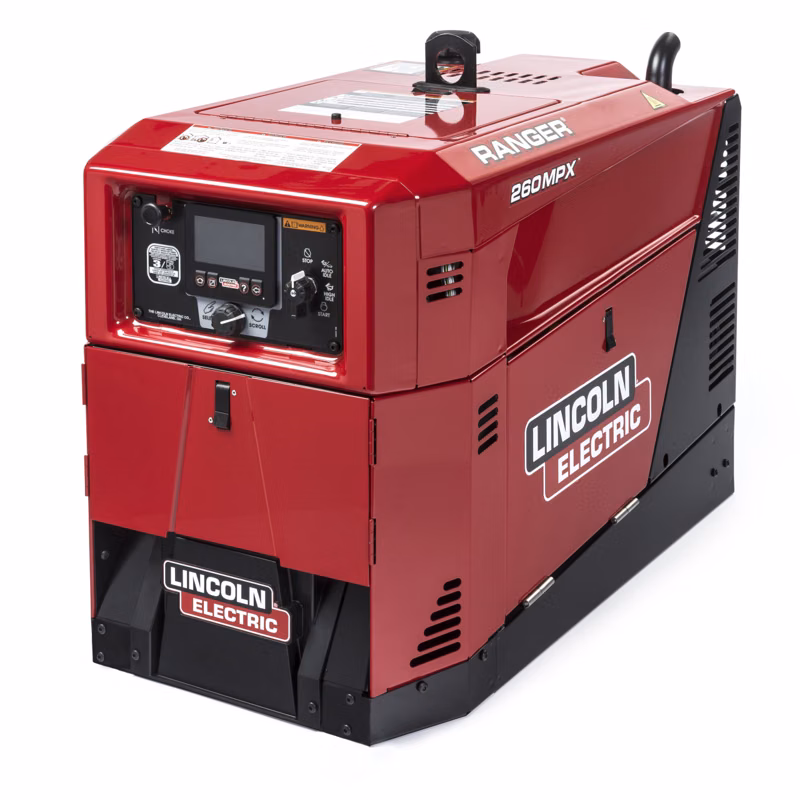

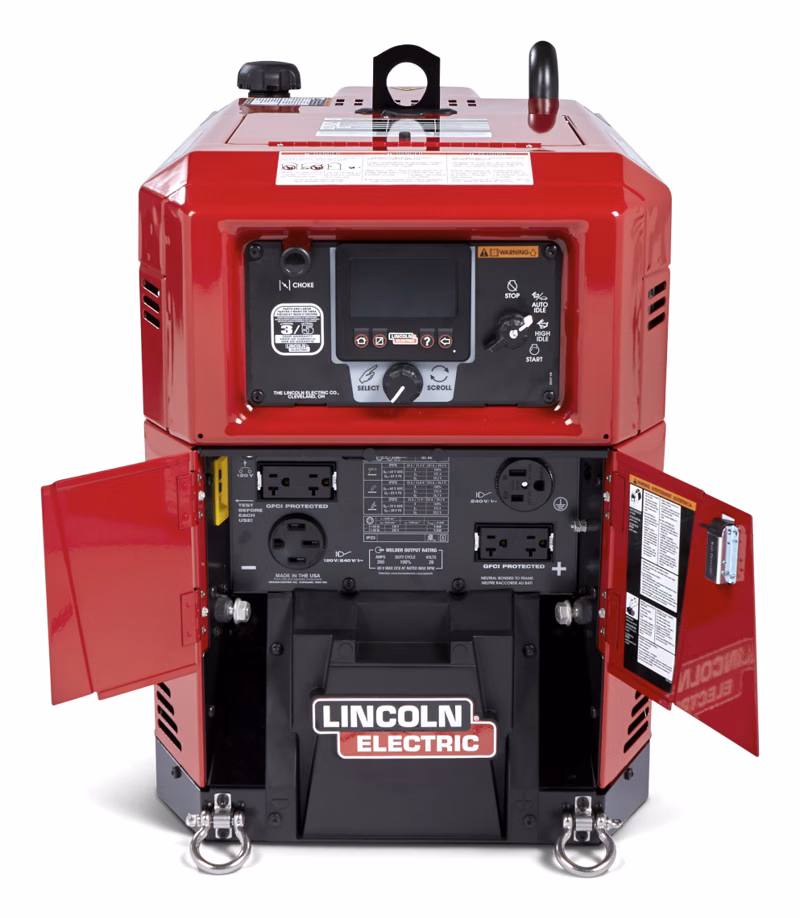

Do More with Less The Ranger® 260MPX™ Engine Driven Welder/Generator excels on the job. The unit’s industry-leading design makes it smaller, lighter, and quieter than other machines in its class, while an intuitive user interface with advanced technology helps simplify operation and improve arc control. You can also count on a reliable source of clean generator power to run a variety of tools and sensitive equipment. Get the job done with the Ranger® 260MPX™. This premium welder/generator has excellent multi-process capability for stick, TIG, MIG while providing clean AC generator output.
Specifications
Manufacturer
Vanair
Model
Ranger® 260MPX™
Year
2025
Category
Welders
Subcategory
Welders
Engine Brand & Model:
Kohler® OHV Command CH730
Engine Description:
2 Cylinder Air-Cooled Gasoline Engine
Engine Horsepower:
23.5 HP
Fuel Tank Size:
11 gal, 41.6 L
Unit Dimensions (H x W x D)
26 in x 20 in x 36 in (660 mm x 508 mm x 914 mm)
Machine Processes:
Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G)
Single Phase Auxiliary Output:
9,500 Watts Continuous, 10,000 Watts Peak, 120/240V
Auxiliary Output Frequency:
60 Hz
Receptacle Types:
NEMA 5-20R, NEMA 6-50R, NEMA 14-50R
High Idle Operating Speed @ Rated Output:
3600 RPM
Oil Capacity:
2.0 qts, 1.9 L
Net Weight
446 lbs (202 kg)
